PM Optical Circulators, 1064 nm
Features
Center Wavelength 1064 nm
Polarization-Maintaining Fiber With No Connectors, FC/PC Connectors, or FC/APC Connectors
Damage Threshold
of 300 mW (CIR1064PM) or 3 W (OC-L-1064)
Fast Axis Blocking
Unique-Tel’ s 1064 nm PM Fiber Optic Circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors. The FC/PC and FC/APC connectors have a 2 mm narrow key. Our OC-L-1064 circulator is a high power circulator with a damage threshold
of 3 W.
Specifications
Optical Specifications |
Wavelength Range | 1059 - 1069
nm | 1053 – 1075
nm |
Insertion Loss | ≤2.1
dB | 1.3 – 1.9
dB |
Isolationb | ≥25
dB | 30
dB |
Directivity (1-3) | ≥50
dB | 40
dB |
Polarization Extinction Ratio | ≥20
dB | >20
dB |
Return Loss | ≥50
dB | 50
dB |
Damage Threshold | 300
mW | 3
W |
Mechanical Specifications |
Package Dimensions | Ø5.5
mm x 35
mm | 32.6 x 44.5 x 63.5 mmc |
Fiber | SM98-PS-U25D | PM980-XP
PANDA-Style PM Fiber, Hytrel Loose Tube, Light in Slow Axis |
Length | 1.0 +0.075/-0.0
m | 1.2 ± 0.2
m |
Operating Temperature | -5 to 70 °C | 10 to 50 °C |
Storage Temperature | -40 to 85 °C | -10 to 65 °C |
Operating Relative Humidity | 20% - 80% |
|
Storage Relative Humidity | 20% - 80% |
|
a: Specs based on no connector
b: Internal isolation, assumes connectorized fiber is well-matched
c: Dimensions do not include collimator or pigtails. See drawings for more information.
Types

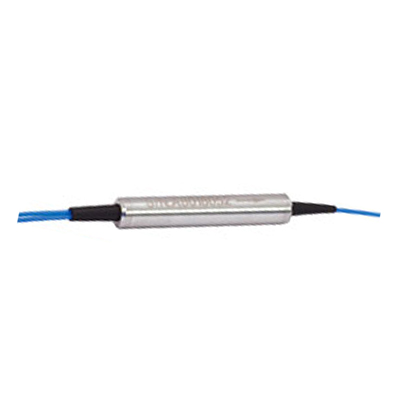

High-Power PM Fiber Optic Circulator, 1053 - 1075 nm, No Connectors

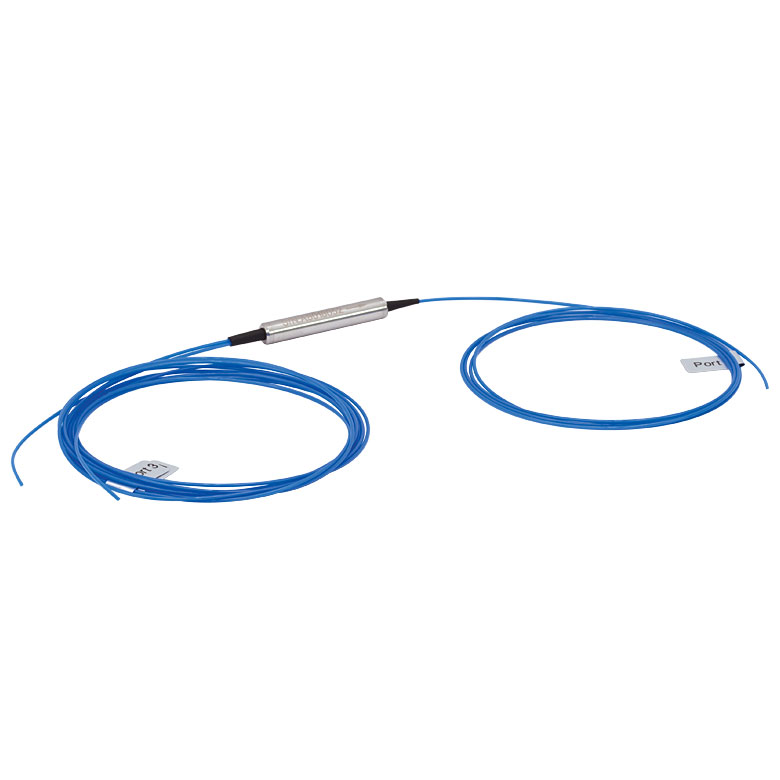

PM Fiber Optic Circulator, 1059 - 1069 nm, No Connectors

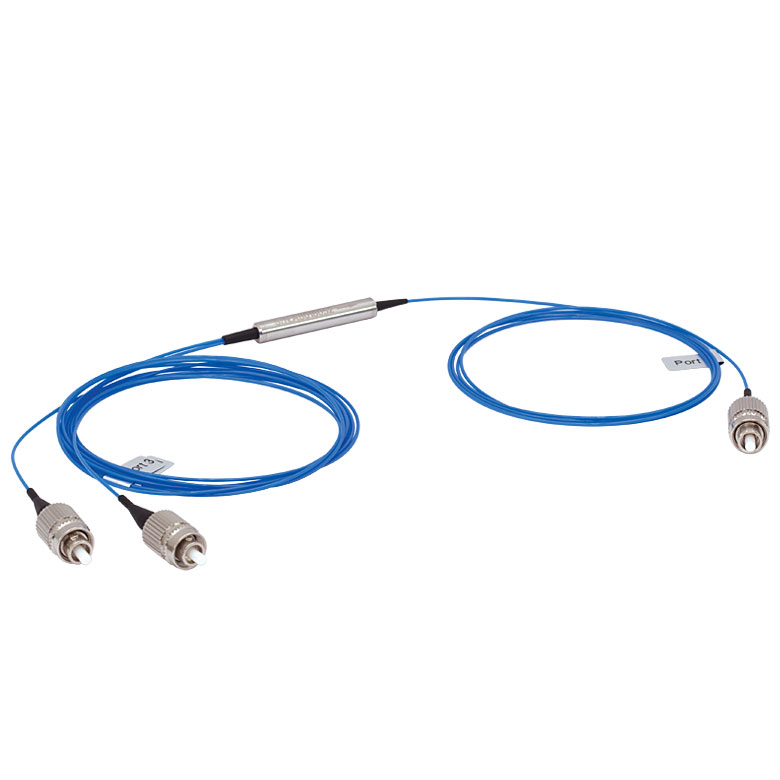

PM Fiber Optic Circulator, 1059 - 1069 nm FC/PC

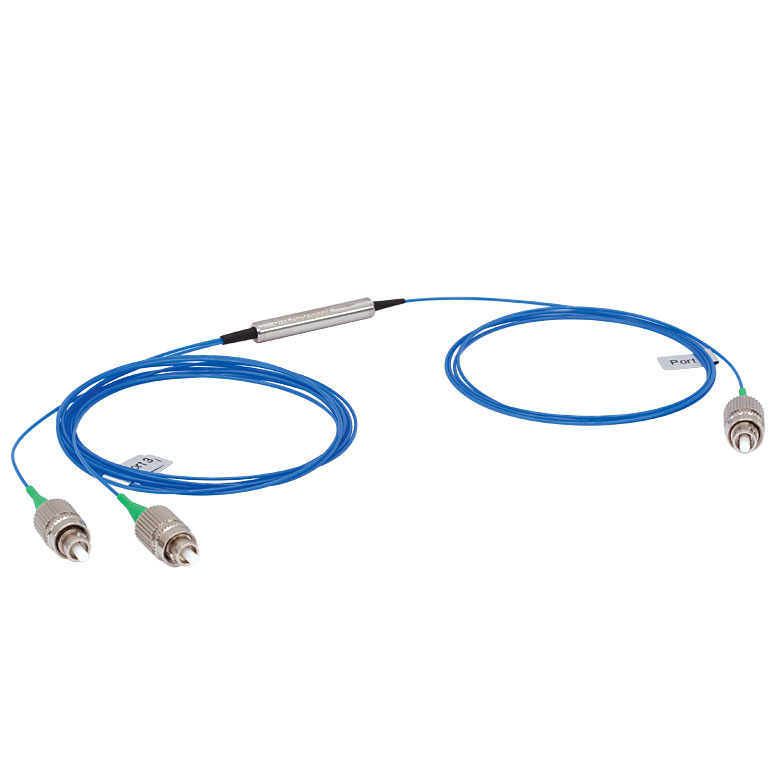

PM Fiber Optic Circulator, 1059 - 1069 nm, FC/APC
