SM Fiber Optical Circulators, 1550 nm
Features
Wavelength Range From 1525 - 1610 nm
Single Mode Fiber With No Connectors, FC/PC Connectors, or FC/APC Connectors
Unique-Tel' s 1550 nm SM Fiber Optic Circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors. The FC/PC and FC/APC connectors have a 2 mm narrow key. These circulators have a maximum power handling of 500 mW (CW).
Specifications
Optical Specifications |
| Wavelength Range | 1525 nm - 1610 nm |
Insertion Loss | 0.8 dB Typical, 1.0 dB Max |
Isolatione | >40 dB Min |
Directivity (1-3) | >50dB |
Polarization Dependent Loss | ≤0.1 dB |
Polarization Mode Dispersion | ≤0.05 ps |
Chromatic Dispersion | - |
Return Loss | ≥50 dB |
Maximum
Power Level (CW) | 500 mW |
Mechanical Specifications |
Package Dimensions | Ø5.5 mm x 50.5 mm |
Fiber | SMF-28e+, 900 µm Loose Tube |
Length | 1.0 m |
Operating Temperature | 0 to 70 °C |
Storage Temperature | -40 to 85 °C |
Operating Relative Humidity | 5% - 60% |
Storage Relative Humidity | 5% - 85% |
e: Internal Isolation; Assumes Terminated Fiber is Well-Matched
Types

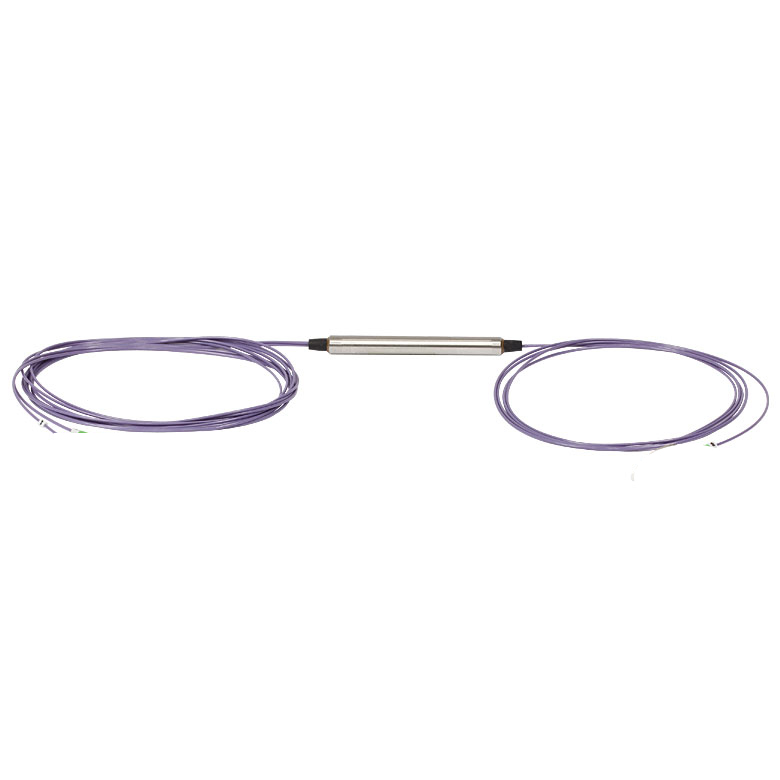

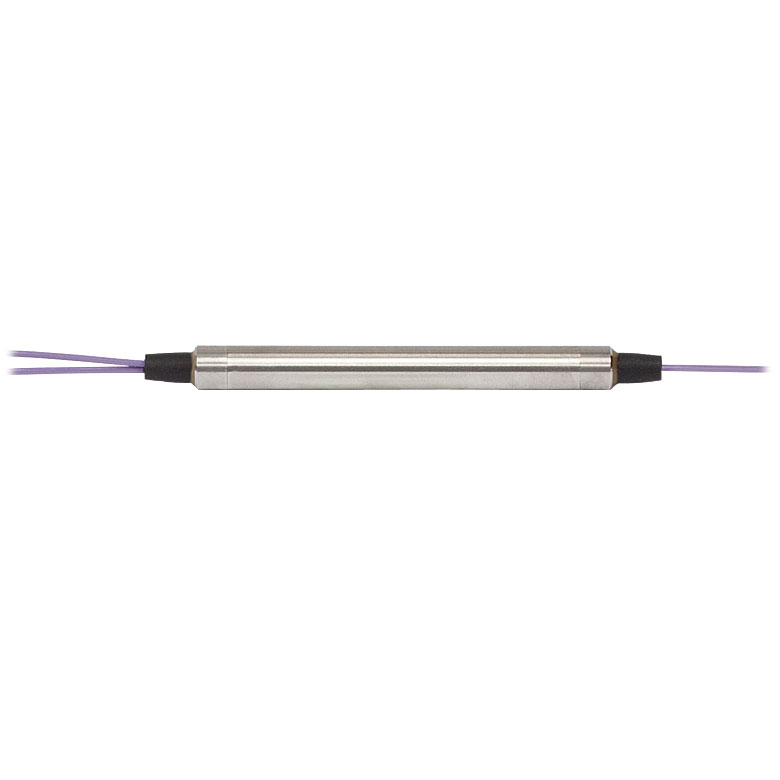

Fiber Optic Circulator, 1525 - 1610 nm, SMF, No Connectors

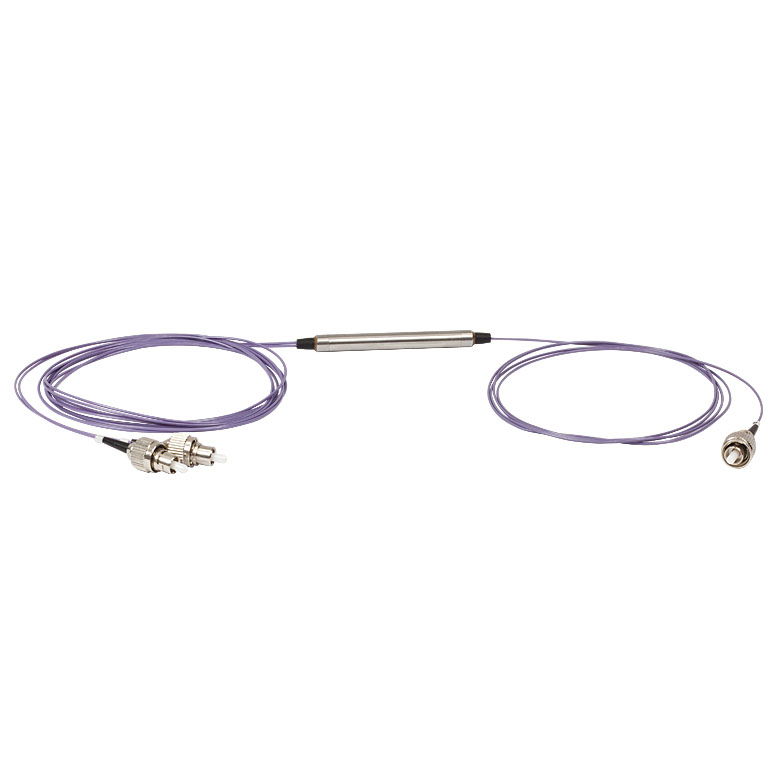

Fiber Optic Circulator, 1525 - 1610 nm, SMF, FC/PC

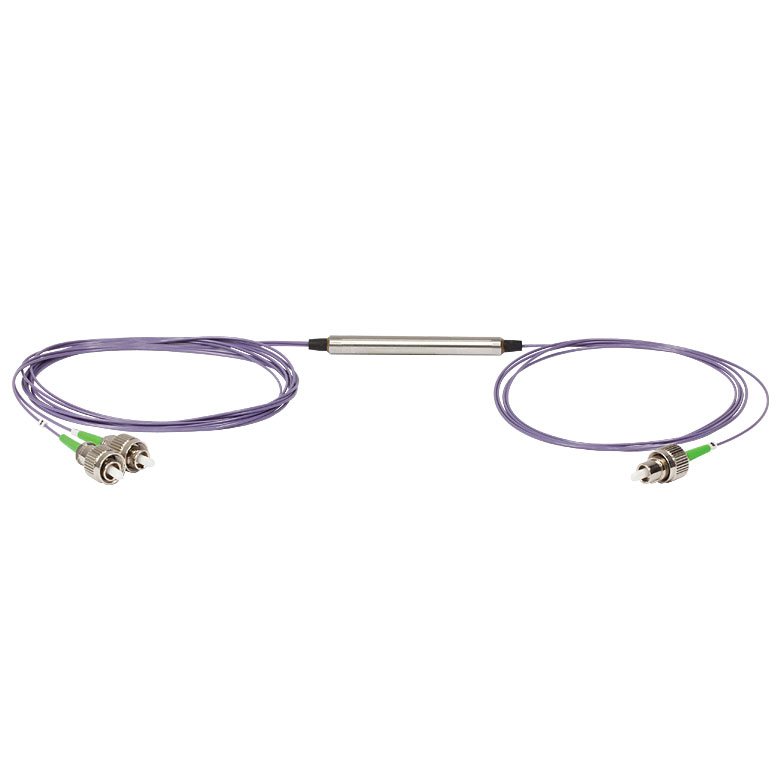

Fiber Optic Circulator, 1525 - 1610 nm, SMF, FC/APC
