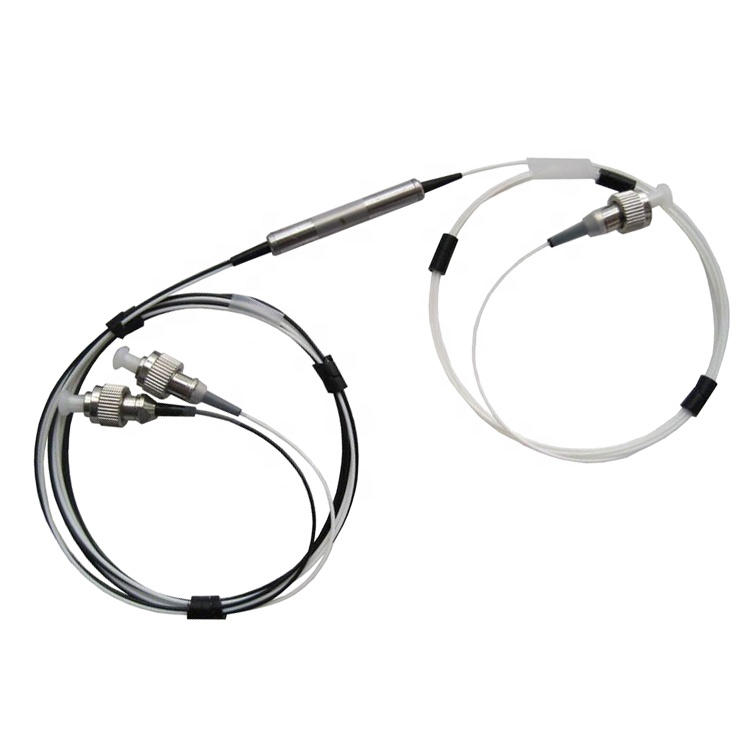

3-Port PM High-Isolation TGG Type Optical Circulator
(1060nm)
Specifications
Parameter | Unit | Dual-Stage |
Wavelength | nm | 1060±10 |
Transmitting Direction | - | 1→2, 2→3 |
Isolation (23℃, All SOP) (2→1) | Typ. | dB | 50 |
Min | dB | 45 |
Isolation (23 , All SOP) (3→2) | Min | dB | 25 |
Insertion Loss (Fast Axis Block) (1→2, or 2→3) | Typ. | dB | 1.5 |
Max | dB | 2.0 |
Extinction Ration | Min | dB | 20 |
Return Loss | Min | dB | 45 |
Directivity (1→3, or 3→1) | Min | dB | 45 |
Optical Power Handling | Max | mW | 250 |
Fiber Type | - | PM 980 |
Package Dimension | mm | Φ24 x L80 |
Operating Temperature | ℃ | 10 to 50 |
Storage Temperature | ℃ | 0 to 60 |
The above specifications are for parts without connectors. Adding connectors can affect the IL, RL, & PDL.
Connector key is aligned to slow axis.
Ordering Information
PMVCIRH | Port | Wavelength | Fiber Type | Cable Type | Fiber Length | Connector | Max Power* (Optional) | Package (Optional) |
| 3=3-Port | 1060=1060nm | PM980 | B=250um | 10=1.0m | NE=None |
|
|
|
|
|
| L=900um | 15=1.5m | FA=FC/APC | X=Others | X=Others |
|
| X=Others | X=Others | H=3mm | 20=2.0m | FC=FC/PC |
|
|
|
|
|
|
| 30=3.0m | SA=SC/APC |
|
|
PMVCIRH |
|
|
| X=Other | X=Others | SC=SC/PC ST=ST/PC LA=LC/APC |
|
|
|
|
|
|
|
| LC=LC/PC |
|
|
|
|
|
|
|
| X=Others |
|
|
*Max. Power affects other specifications.
