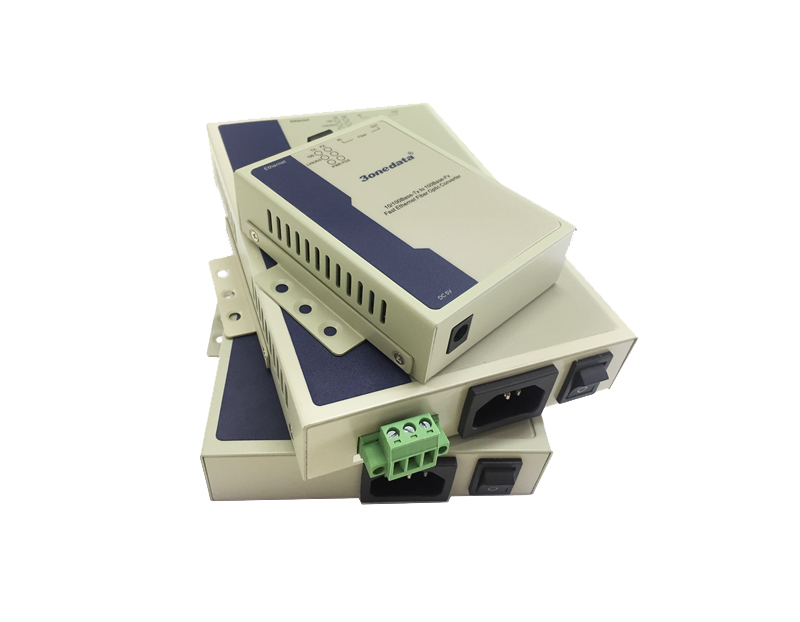

2-port 100M Ethernet Media Converter
Features
Support 1 100M fiber port, 1 100M copper port
Support built-in power supply 220VAC, 48VDC, external power supply 5VDC
Support -10~60℃ wide operating temperature range
Specifications
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX |
Copper Port | 10/100Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning |
Fiber Port | Standard: 100Base-FX Connection mode: SC/ST/FC optional Transmission distance: lMultimode: 2km lSingle mode: 20/40/60/80/100/120km Fiber cable: lMultimode: 50/125μm or 62.5/125μm lSingle mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm Transmission wavelength: lMultimode: 1310nm lSingle mode: 1310nm or 1550nm |
LED Indicator | Port indicator, power supply indicator |
Power Requirement | Support three kinds of mains input methods lExternal 5VDC, DC round head lBuilt-in 220VAC, AC socket with switch lBuilt-in 48VDC, 3-pin 5.08mm pitch terminal blocks |
Power Consumption | 4W |
Environmental Limit | Operating temperature: -10~60℃ Storage temperature: -20~70℃ Relative humidity: 5%～95%（no condensation） |
Physical Characteristic | Housing: metal Installation: wall or DIN-Rail mounting Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply) 115mm×30mm×173.2mm (built-in power supply) |
Certification | CE, FCC, RoHS |
Warranty | 3 years |
Description
2-port 100M media converter. It can convert Ethernet electrical signal into Ethernet optical signal to extend the transmission distance. It also has good isolation protection and data confidentiality. This series include three types of products with different mains input methods and provide 100M copper port, 100M fiber port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.
This series of products conform to CE, FCC certification standards. Hardware adopts fanless, low power consumption, wide temperature and voltage design, which can suit for the scene environment with harsh requirements. It can be widely used in various fields.
