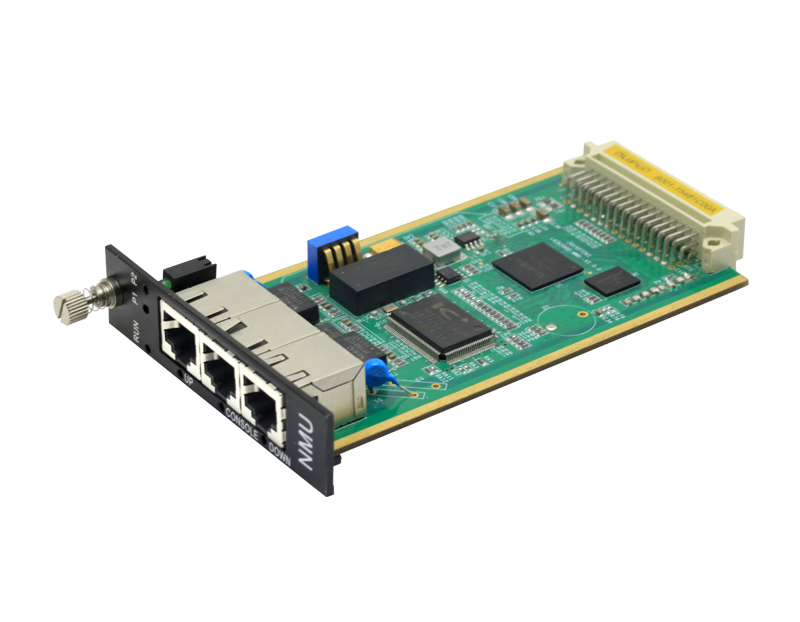

2-port 100M Industrial Media Converter Management Card
Features
Support 2 100M copper ports
Input voltage: 12VDC
Support -30~60℃ wide temperature range operation
Specifications
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow Control |
Management | Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment |
Security | Power Supply Alarm, Port Alarm, E-mail Alarm |
Time Management | SNTP |
Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Console port: CLI command line management port(RS-232), RJ45 |
LED Indicator | RUN indicator, Console port indicator, port indicator UP/DOWN |
Switch Property | Transmission mode: store and forward Switch time delay:＜10μs |
Power Requirement | Input voltage: 12VDC |
Power Consumption | No-load: 1.00W@12VDC Full-load: 1.51W@12VDC |
Environmental Limit | Operating temperature range: -30~60℃ Storage temperature range: -30~60℃ Relative humidity: 5%～95% (no condensation) |
Physical Characteristic | Installation: slide-in mounting Weight: 80g Dimension (W x H x D): 84.5mm×20.0mm×122.5mm |
Certification | CE, FCC, RoHS |
Warranty | 5 years |
Description
100M industrial media converter management card, which could be used with RACK2100 rackmount chassis, IMC101M-F and ECU101M-1F. It provides multiple interfaces like copper port and Console etc., and adopts slide-in mounting which is easy and convenient for installation and use.
The product adopts industrial grade design and support IEEE802.3/802.3u/802.3x store-and-forward mode and management standards of WEB, Telnet, SNMP and Console port etc. The copper ports support 10/100M self-adaption.
The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
