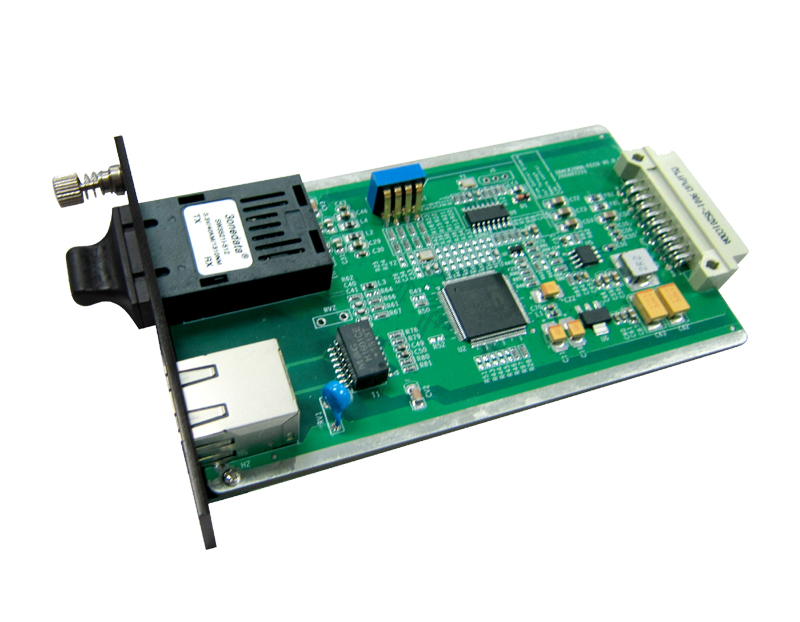

2-port 100M Industrial Media Converter Unmanaged Daughter Card
Features
Support 1 100M copper port and 1 100M fiber port
Input voltage: 12VDC
Support -30~60℃ wide temperature range operation
Sepecifications
Standard & Protocol | IEEE 802.3 for 10BaseT IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control |
Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX , SC/ST/FC optional |
LED Indicator | STA Running Indicator, Port Indicator, LFP Indicator |
Switch Property | Transmission mode: store-and-forward or cut-through MAC address: 1K Packet buffer size: 0.28M Backplane bandwidth: 0.6G Switch time delay: ＜10μs |
Power Requirement | Input voltage: 12VDC |
Power Consumption | No-load: 1.10W@12VDC Full-load: 1.52W @12VDC |
Environmental Limit | Operating temperature range: -30~60℃ Storage temperature range: -30~60℃ Relative humidity: 5%～95% (no condensation) |
Physical Characteristic | Installation: slide-in mounting Weight: 60g Dimension (W x H x D): 84.5mm×20.0mm×122.5mm |
Certification | CE, FCC, RoHS |
Warranty | 5 years |
Description
100M industrial media converter unmanaged daughter card. The product provides 100M copper port and fiber ports. It adopts slide-in mounting and could be matched with the media converter rack RACK2100.
The series adopt industrial grade design and support IEEE802.3/802.3u standard. Its copper port supports 10/100M, full/half duplex, MDI/MDI-X self-adaption, store-and-forward and cut-through mode setting.
The DIP switch could implement functions like LFP alarm, cut-through/store-and-forward modes and flow control. When the LFP function is turned on and the port has link failures, the LFP indicator will light up and send out an alarm to offer quick troubleshooting on the scene. Hardware adopts low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
