| Model # | BMETS1 | Keyword | fiber transceiver、media converter、ethernet to fiber、gigabit transceiver | | Type | 100M Transceiver | MOQ | 1pcs |

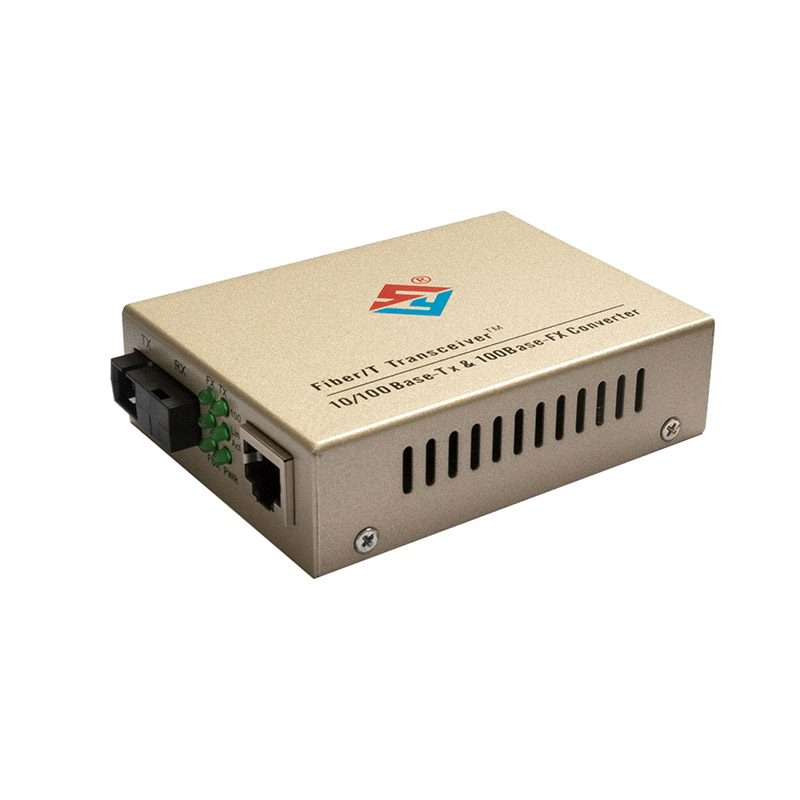

Fiber Transceiver 10/100 Base Tx & 100 Base FX Converter Product Features 1. Comply with IEEE 802.3, 100Base FX and 100Base TX standards 2. Support full duplex/half duplex working mode, MDI/MIDX polarity adaptive 3. Multi-mode transmission distance: 2KM 4. Single-mode transmission distance: 25/40/60/80/120km 5. Fan-less design, improve stability and service life 6. Complete LED status indicator to facilitate network diagnosis and fault checking 7. Plug and play, can be used with 2u-14 slot rack 8. Good flow control, with self-reset function, can effectively prevent the phenomenon of crash 9. Average trouble-free working time >105000 hours Specifications Interface | 1 x 10/100 Base-TX, RJ-45 1 x 100 Base FX, SC/FC/ST/SFP | Rate | 10/100mbps (adaptive) | Indicator lights | PWR, FDX, FX LINK, TX LINK, TX LINK, TX ACT | Power supply | 5.08mm diameter jack | Transmission distance | 2KM, 25KM, 40KM, 60KM, 80KM, 120KM | Electrical and Mechanical Specifications | Power input | Input AC 220V, output DC 5V | Enclosure | Metal enclosure, no fan | Overall size (W×H×D) | 94 x 70 x 25mm | Weight | 260 g | Installation method | Independent use/wall hanging/case plugging | The work environment |
| Operating temperature | -10°C ~55°C | Storage temperature | -35°C~75°C | Relative humidity | 5-95% no condensation | Average trouble-free working time | 105,000 HRS | Certification | Safety and EMC | Meet FCC, UL, CE, TUV, CSA standards |
Order Information Model | Functional Description | Power Supply | TS-1101-SSA/B | 1x100 Base FX, 1x10/100 Base-TX, single mode fiber, SC, 25 km, 1310 nm/1550 nm | 5 V DC | TS-1101-S | 1x100 Base FX, 1x10/100 Base-TX, single mode double fiber, SC, 25KM, T/Rx 1310nm | 5 V DC | TS-1101-MSA/B | 1x100 Base FX, 1x10/100 Base-TX, multimode fiber, SC, 2 km, 1310 nm / 1550 nm | 5 V DC | TS-1101-M | 1x100 Base FX, 1x10/100 Base-TX, multi-mode double fiber, SC, 2KM, T/R1310nm | 5 V DC | TS-11 o1-SFP | 1x100 Base FX(SFP), 1x10/100 Base-TX | 5 V DC |
Description TS-1101 Series 10/100Mbps Fiber Transceiver provides 1 100base-fx optical fiber interface (SC/FC/ST/SFP, single/multi-mode, single/dual-fiber optional). Single-mode products are equipped with standard transmission of 25KM 1x9 optical module.At the same time, one 10/100 base-t (X)RJ45 port is provided, which supports automatic recognition of 10Mbps and 100Mbps, full-duplex/half-duplex working mode and automatic identification of MDI/MDIX polarity.This product is a transmission product specially developed by our company for building automation, weak current engineering, network hd monitoring system and other application fields. |
