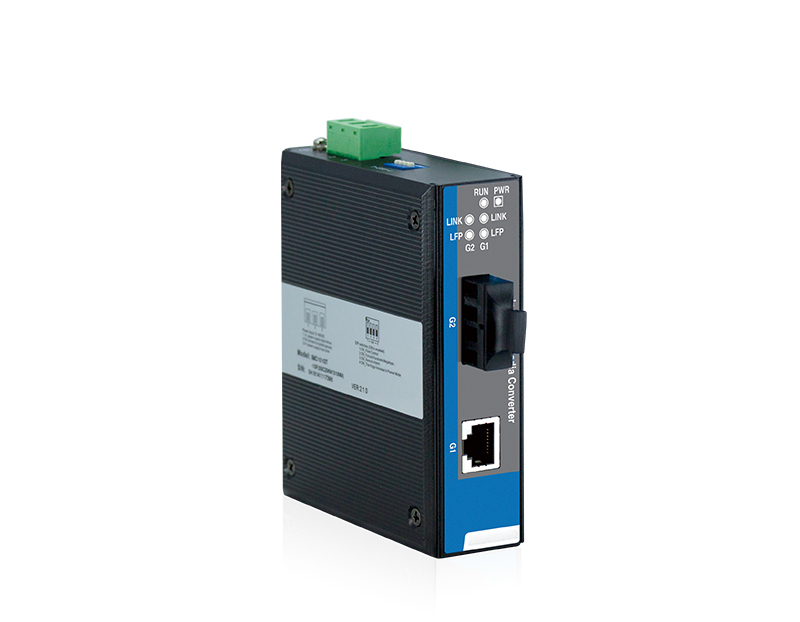

2-port Full Gigabit Unmanaged Industrial Media Converter
Features
Support 1 Gigabit fiber port or SFP slot optional, 1 Gigabit copper port;
Support input voltage: 12~48VDC, nonpolarity, reverse polarity protection;
Support -40~75℃ wide operating temperature range.
Specifications
Standard & Protocol
| IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control |
Interface | Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 1000Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP |
LED Indicator | Running indicator, Port Indicator, Power Supply Indicator, LFP indicator |
Switch Property | Transmission mode: store and forward MAC address: 1K Packet buffer size: 1Mbit Backplane bandwidth: 12G Switch time delay: < 10μs |
Power Requirement | 12~48VDC, 3-pin 7.62mm pitch terminal blocks Support nonpolarity, reverse polarity protection |
Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation） |
Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: ≤350g |
Industrial Standard | IEC 61000-4-2 (ESD), Level 4 Air discharge: ±16kV Contact discharge: ±8kV
IEC 61000-4-4 (EFT), Level 2 (IMC101GT-1GF) Power supply: ±1kV Ethernet interface: ±0.5kV
IEC 61000-4-4 (EFT), Level 1 (IMC101GT-1GS) Power supply: ±0.5kV Ethernet interface: ±0.25kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Certification | CE, FCC, RoHS |
Warranty | 5 years |
Description
2-port full Gigabit unmanaged industrial media converter. This series include two types of products and provide Gigabit copper port, Gigabit fiber port and Gigabit SFP slot. It adopts DIN-Rail mounting to meet the requirements of different application scenes.
The design of DIP switch can realize the specified copper port speed of 100M,as well as
LFP alarm and jumbo frame. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
