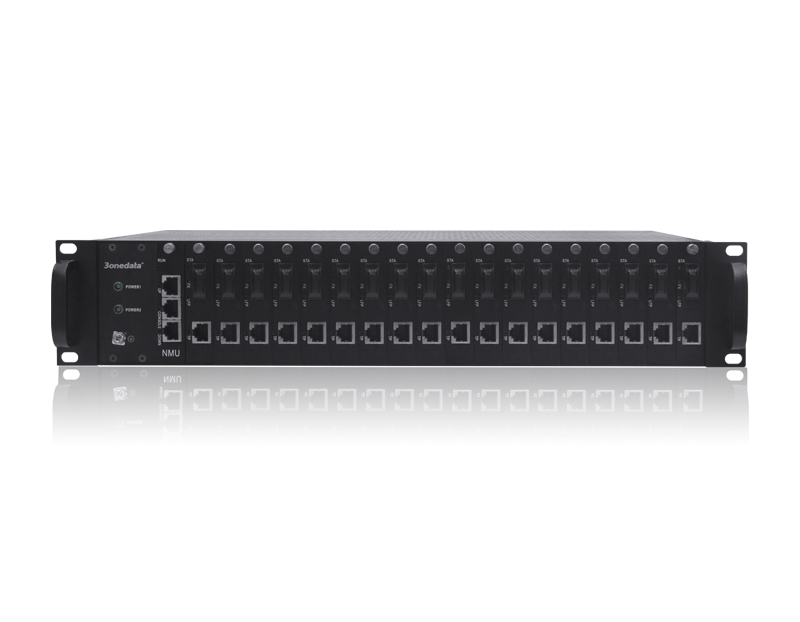

18-Slot Card Industrial Multi-service Rack
Features
Support 18 slots, allows centralized management of various media converter daughter cards
Support optional management cards for SNMP, Telnet, WEB configuration management
Support dual power supply, input voltage: 85~264VAC
Support -30～60℃ wide operating temperature range
Specifications
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control |
Management | SNMP V1/V2c Centralized Management of Equipment, Bandwidth Management, E-Mail Alarm, Port Alarm, Power Supply Alarm, DHCP Client, SNTP, File Management |
Interface | Copper port: 10/100Base-T(X) or 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX or 1000Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP Console port: CLI command line management port(RS-232), RJ45 |
Switch Property | Transmission mode: store and forward or cut-through
100M daughter card MAC address: 1K Packet buffer size: 0.28Mbit Backplane bandwidth: 0.6G
Gigabit daughter card MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 6G
Switch time delay: <10μs |
Power Requirement | Input voltage: 85~264VAC Output voltage: 12VDC Dual power supply redundancy, fused AC outlet |
Power Consumption | No-load: 26.24W@220VAC Full-load: 34.46W@220VAC |
Environmental Limit | Operating temperature: -30~60℃ Storage temperature: -30~60℃ Relative humidity: 5%～95%(no condensation) |
Physical Characteristic | Housing: IP20 protection, metal Installation: 2U rack mounting Dimension (W x H x D): 432.04mm×88.1mm×278mm Weight: 5.07kg |
Certification | CE, FCC, RoHS |
Warranty | 5 years |
Description
18-slot card industrial media converter racks. It could be inserted in up to 18 movable daughter cards and power them uniformly, thus reducing cables which is convenient for management and maintenance. This product could be used matching with various media converter daughter cards like 100M copper port, 100M fiber port, gigabit copper port, gigabit fiber port and gigabit SFP slot, and adopts 2U rack mounting, which can meet the requirements of different scenes.
It could implement network management functions such as remote card and local card configuration, bandwidth management, rate and duplex mode configuration, LFP alarm enablement, transmission mode configuration etc, by plugging in managed daughter card and corresponding management card. It also supports port alarm, power supply alarm, e-mail alarm, alarm information statistics and user management, etc. Access methods like CLI, WEB, Telnet, SNMP are also supported. The friendly interface design and easy and convenient operation of network management system could offer you great user experience.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The rackmount chassis provides two power supply plans, the front type and the back type, which can fully meet the demands of power supply on scene. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
