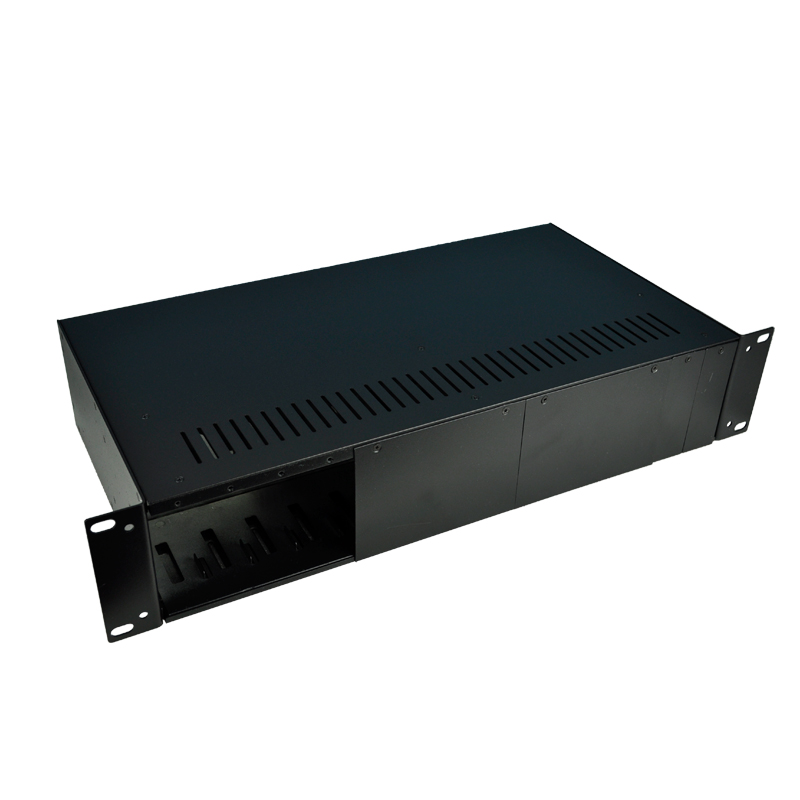

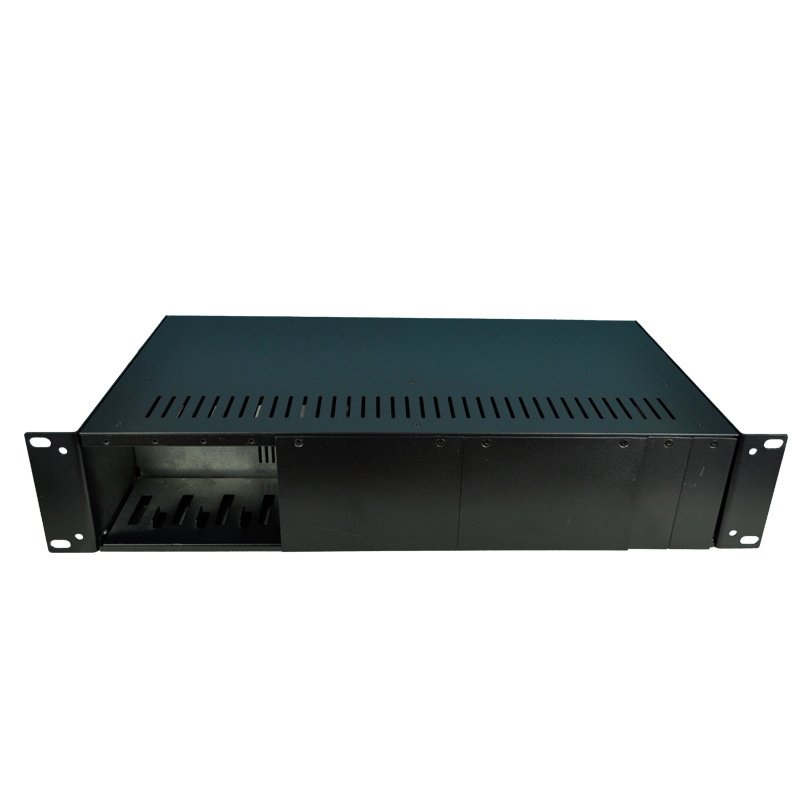

TS-2U14R Series Fiber Transceiver Frame
Technical Specifications
Slot | 14 |
LED indication | POWER |
Power input | AC 100 ~ 260V, 50 ~ 60HZ/ dc-48v optional |
Dc output | DC5V, 12A |
Ripple | 50 mv or less |
Noise | 50 mv or less |
Power protection | Over voltage protection, over current protection, short circuit protection |
Operating temperature | 0 ~ 50℃ |
Storage temperature | -20℃ ~ 70℃ |
Relative humidity | 5% ~ 95% |
Power configuration | single power or double power hot backup |
Frame size | 90mm (H) x 485mm (W) x 230mm (D), 19 inches 2U high |
Size of desktop transceiver | 94mm (L) x70mm (H) x 25mm (L) |
DC plug diameter | 2.5/5.5mm |
Security certification | FCC Class A, CE Mark VCCI Class A, c-tick |
Order Information
Model | Description | Power supply |
TS-2U14R-S | 19”2U,14 slots, single power supply | 220V AC |
TS-2U14R-D | 19”2U,14 slots, double power supply | 220V AC |
Brief Introduction

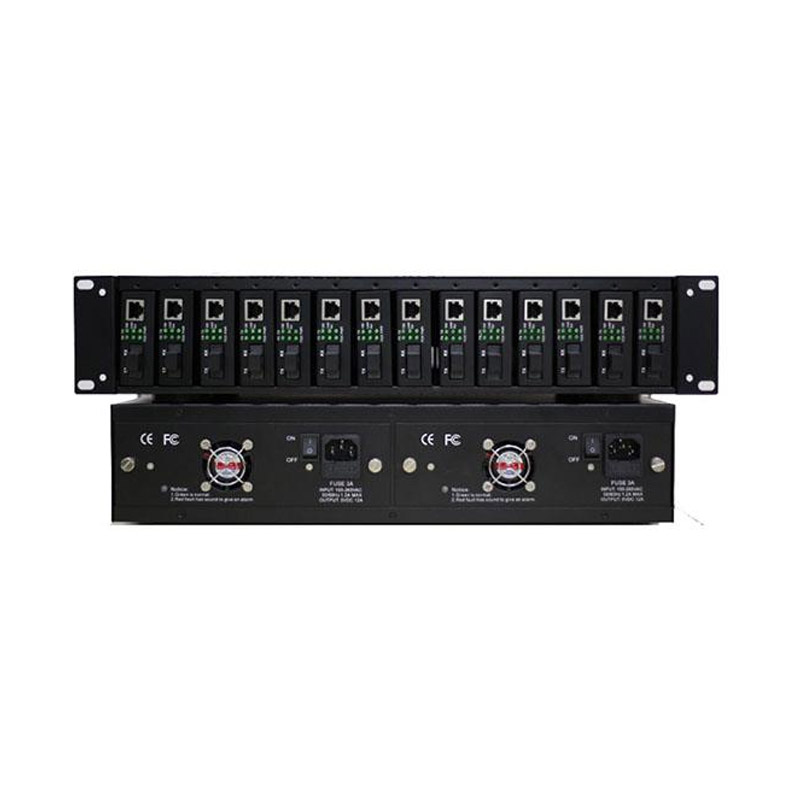

The TS-2U14R series fiber transceiver frame is equipped with 14 external power transceiver slots, providing flexibility in the configuration of multiple modules working at the same time and hot plugging.The automatic switch of main and standby power supply guarantees the reliability, continuity and intelligence of the whole system.

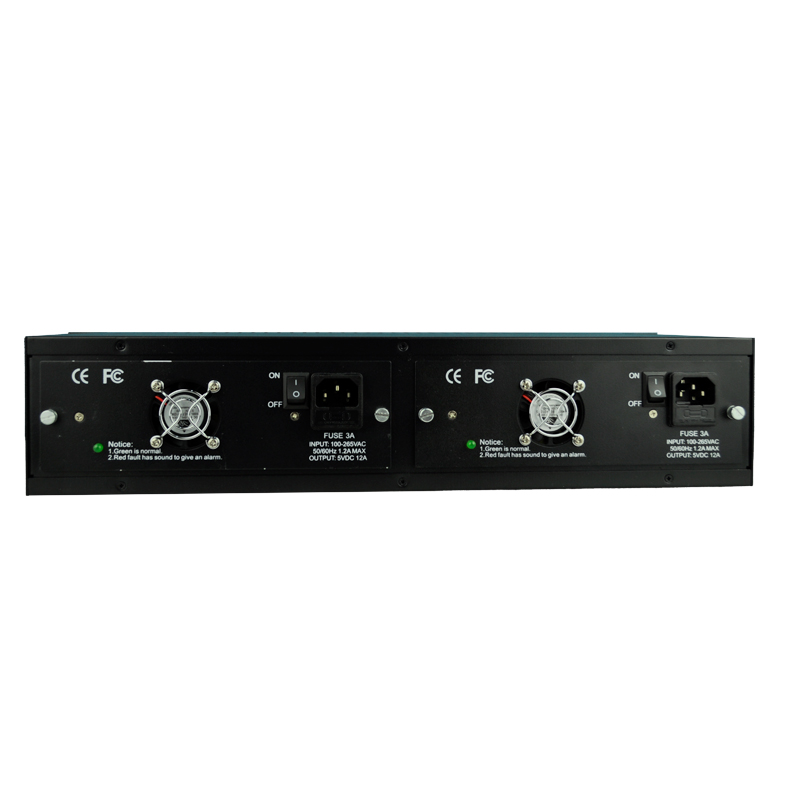

The frame supports hot plug and plug, single power supply or double power supply.When double power supply is adopted, two power supply will be supplied at the same time, which reduces the load of each power supply and prolongs the service life of the power supply.When one power supply fails, the other power supply can be supplied independently, so that the work of the transceiver will not be interrupted.When repairing and replacing the power supply, it is not necessary to pull out the optical fiber transceiver, nor to remove the frame from the cabinet. It is only necessary to pull out the faulty power supply from the back of the frame for maintenance or replacement, making maintenance extremely convenient and fast.Thus, it can provide high reliability, high capacity, high integration, high performance and economical and practical solution for optical fiber Ethernet network system, which is characterized by stable operation, large power supply capacity, convenient operation and easy maintenance.
2U-14槽收发器机箱
技术参数：插槽：14个LED指示：POWER（电源）电源输入：AC 100～260V，50～60HZ/DC-48V 可选直流输出：DC5V，12A纹波：≤50mv噪音：≤50mv电源保护：过压保护，过流保护，短路保护工作温度：0～50℃储存温度：-20℃～70℃相对湿度：5%～95%电源配置：单电源或双电源热备份机架尺寸：90mm（H）x 485mm（W）x 230mm（D），19英寸2U高
台式收发器尺寸： 94mm (L) x70mm (H) x 25mm (L)DC插头直径：2.5/5.5mm
安全认证：FCC Class A，CE Mark VCCI Class A，C-Tick
订购信息
型号 | 描述 | 电源 |
LS-2U14R-S | 19”
2U,14槽，单电源供电 | 220V AC |
LS-2U14R-D | 19〃
2U,14槽，双电源供电 | 220V AC |
简介： LS-2U14R系列光纤收发器机架配有14个外置电源式收发器插槽，具有多种模块同时工作和热插拔等配置上的灵活性。主、备电源自动切换、完善的功能保证了整个系统的可靠性、连续性和智能性，不啻为大中型城市的宽带光纤网络媒质转换的优选设备。
本机架支持热插拔，可选用单电源或双电源供电方式。采用双电源时二个电源将同时供电，减轻了每个电源的负荷，延长了电源使用寿命。当有一个电源出现故障时，另一个电源又可独立供电，使收发器的工作不致中断。对电源进行维修和更换时不需拔出光纤收发器，也不需从机柜中拆下本机架，只需从机架背面拔出有故障的电源进行维修或更换，使维护极为方便快捷。从而能为光纤以太网络系统提供高可靠性、高容量、高集成度及高性能和经济实用的光纤网络中心解决方案，具有工作稳定、供电容量大、操作方便、易于维护等显著特点。
