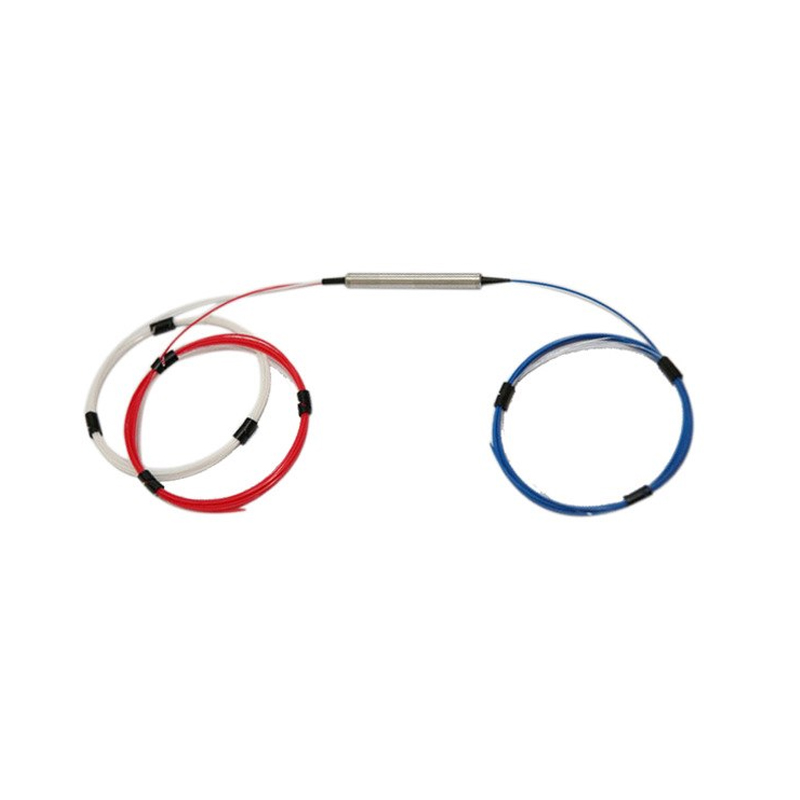

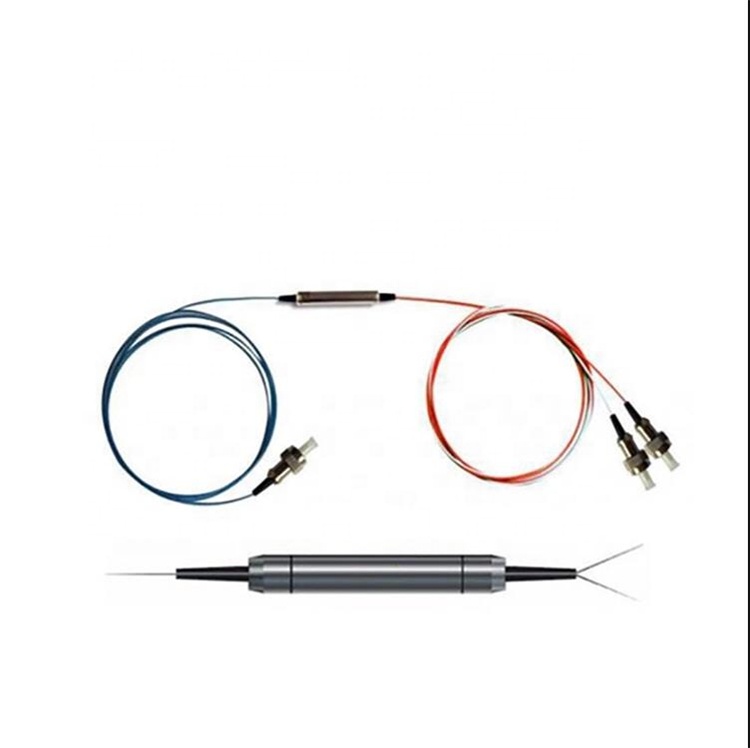

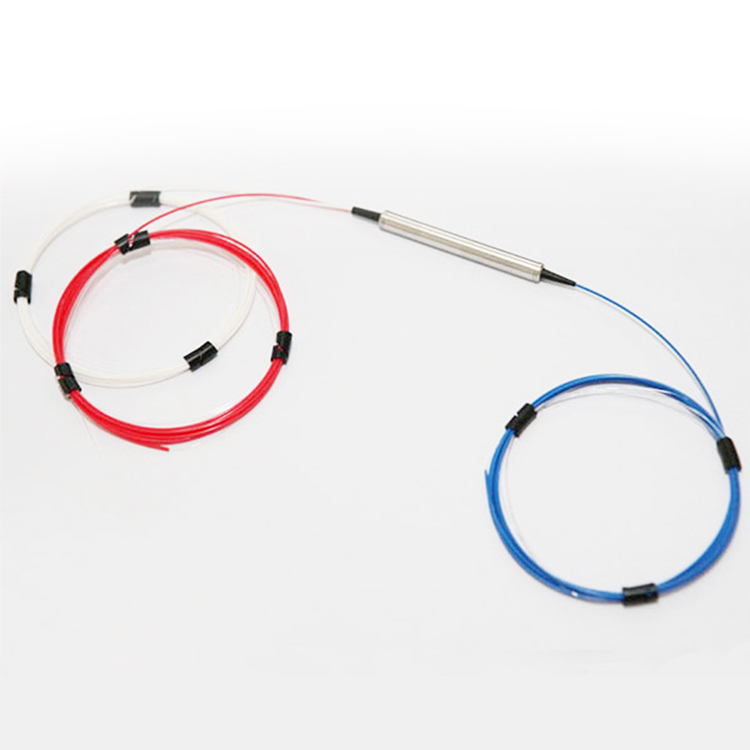

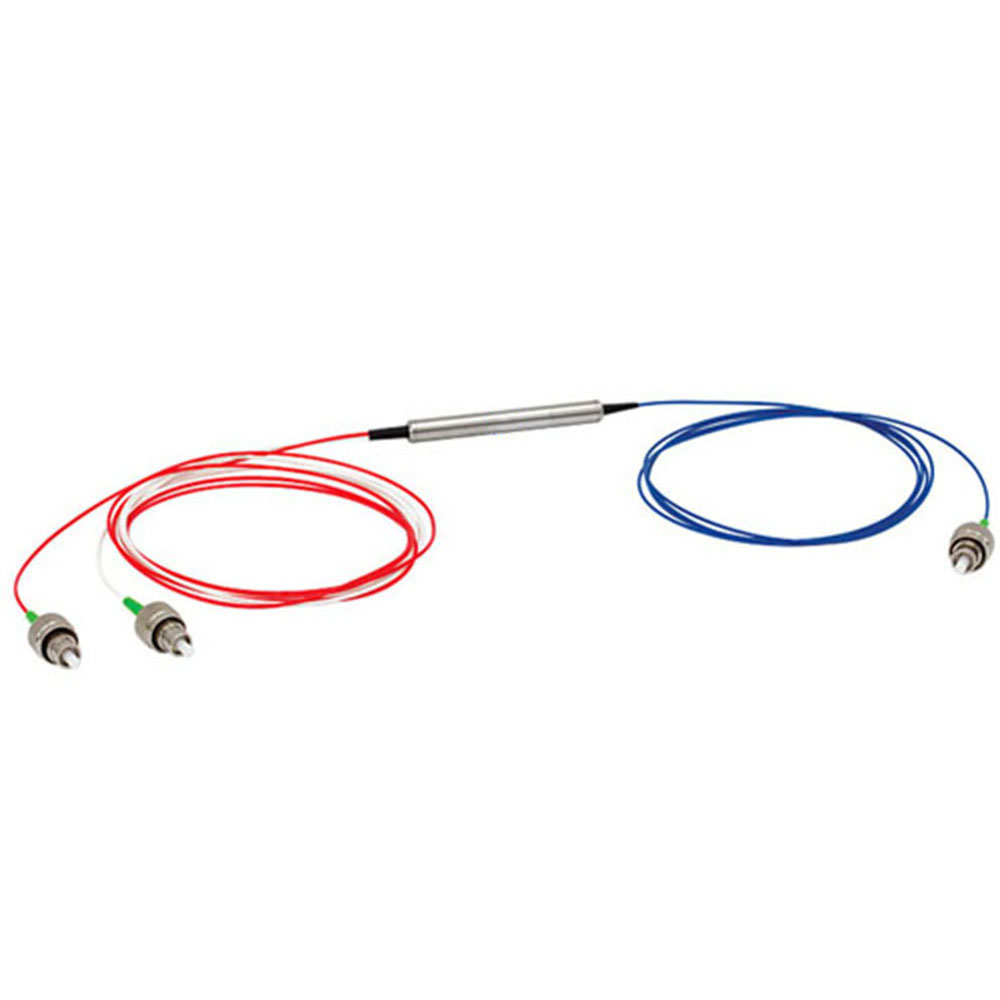

MINI-SIZE SINGLE-MODE 3-PORT OPTICAL CIRCULATOR
(1310, 1550nm, or C+L Band)
Specifications
Parameter | Unit | 1310, or 1550
| C+L Band |
Wavelength | nm | 131020, or 155020 | 1530-1610 |
Transmitting Direction | - | 1→2, 2→3 |
Isolation (All SOP) (2→1, or 3→2) | (λc, 23℃) | Typ. | dB | 55 | 55 |
(23℃) | Min | dB | 40 | 35 |
Insertion Loss (All SOP) (1→2, or 2→3) | (λc, 23℃) | Typ. | dB | 0.6 | 0.8 |
(23℃) | Max | dB | 0.8 | 1.0 |
PDL | Max | dB | 0.15 | 0.20 |
PMD | Max | ps | 0.10 |
Return Loss | Min | dB | 55 |
Directivity (1→3, or 3→1) | Min | dB | 55 |
Optical Power Handling | Max | mW | 300 |
Package Dimension | mm | Φ5.5 x L38 |
Operating Temperature | ℃ | -5 to 70 |
Storage Temperature | ℃ | -40 to 85 |
* The above specifications are for parts without connectors. Adding connectors can affect the IL, RL, & PDL.
* SOP=State Of Polarization
Ordering Information
CIR | Port | Wavelength | Fiber Type | Fiber Length | Connector | Package |
CIR | 3=3-Port | 13=1310nm 15=1550nm 159=1590nm CL=C+L Band
X=Others | B= SMF-28, 250um L= SMF-28, 900um
X=Others | 10=1.0m 15=1.5m 20=2.0m 30=3.0m
X=Others | NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC ST=ST/PC LA=LC/APC LC=LC/PC
X=Others | 5.5x38 = Mini (Φ5.5 x L38)
X=Others |
