OPLC Hybrid Optical Fiber Power Cable 1-12 Core Fiber Optic Cable
comment:0
Specification
Reviews(0)

OPLC Hybrid Optical Fiber Power Cable 1-12 Core Fiber Optic Cable


Characteristic of hybrid fiber cable


1. The composite cable provides the equipment electricity and single transmission, and improves central monitoring and maintenance for equipment power.

2. To reduce the coordination and maintenance of power supply.

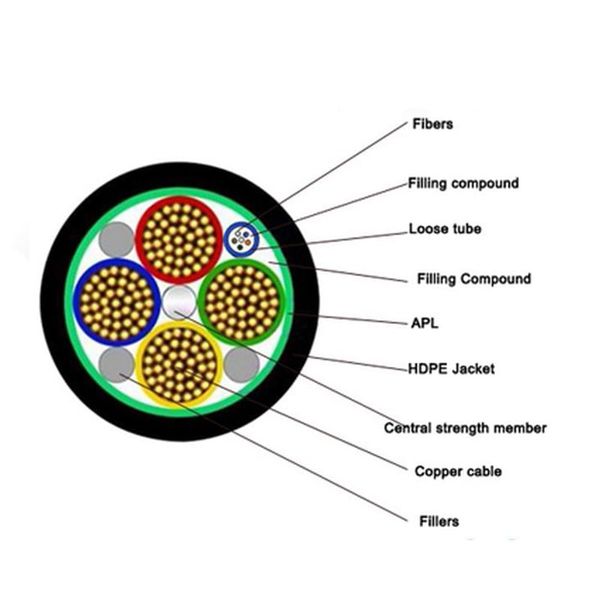

3. Combines optical fiber (multimode or single mode) and copper conductor for DC power in a single light weight aluminum corrugated cable.


Hybrid Fiber Cable Parameter


Cable Type

Fiber

Counts

Cable Diameter(mm)

Weight

(KG/KM)

Tensile

Strength(N)

Crush Resistance(N/100mm)





Long term

Short term

Long term

Short trem

GDTS- 2*1.5

2-24

11.2

132

600

1500

300

1000

GDTS-2*2.5

2-24

12.3

164

600

1500

300

1000

GDTS- 2*4.0

2-24

13.4

212

600

1500

300

1000

GDTS-2*5.0

2-24

14.6

258

600

1500

300

1000

GDTS- 2*6.0

2-24

15.4

287

600

1500

300

1000

GDTS-2*8.0

2-24

16.5

350

600

1500

300

1000

Note:

1. 2*1.5/2*2.5/2*4.0/2*6.0 is the number of specification of the conductor.

2. Different conductor specification can be make as required.

3. Different fiber specification can be make as required.


Our Service


1. Free samples are available

2. Fast Delivery, normally 5 Days after payment

3. Strictly quality control system

4. Quality Certificate ISO9001 is available


Application


1. hybrid of fiber cable Suitable the filed where needs to transmit light single and electric single.

2. Mobile operator deploying an RRU architecture to standardize the RRU.


Specifications


Jacket

PVC LSZH LSOH PE HDPE

Certification

CE/ROHS/ISO9001/TUV/ROSH

Color

Black

Packing

Wooden Drum

fiber optical core

G652D, G657A1, G657A2

Layout ways

underground/buried/pipeline

Fibre optical

Single mode

Jacket sheath

HDPE,MDPE
