Visual Fault Locator 20kM
comment:0
Specification
Reviews(0)
Model #: VFL-20 Keyword: Visual Fault Locator
Type: - MOQ: 2

20mW Visual Fault Locator Red light Fiber Optic Cable Tester 20KM Test Laser Product Optic Cable Test Equipment VFL-30mW

The 650nm Pen-type Visual Fault Finder is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity cheching in an optical network during and after installation.

It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR

2.5mm universal connector

Constant output power

Lower Battery warning

Long battery life(up to 50 hours)

Spec&Datasheet

Wavelength

  650nm±10nm

Emitter Type

  FP-LD laser

Output power

  20mW

connector

  2.5mm universal adapter

Working mode

Both CW and Pules available

Operating   temperature

  -10~+45 °C

Storage   temperature

  -40~+70 °C

Power

2pcs AA battery

Working hours

  60

Weight

78g (excluding batteries)

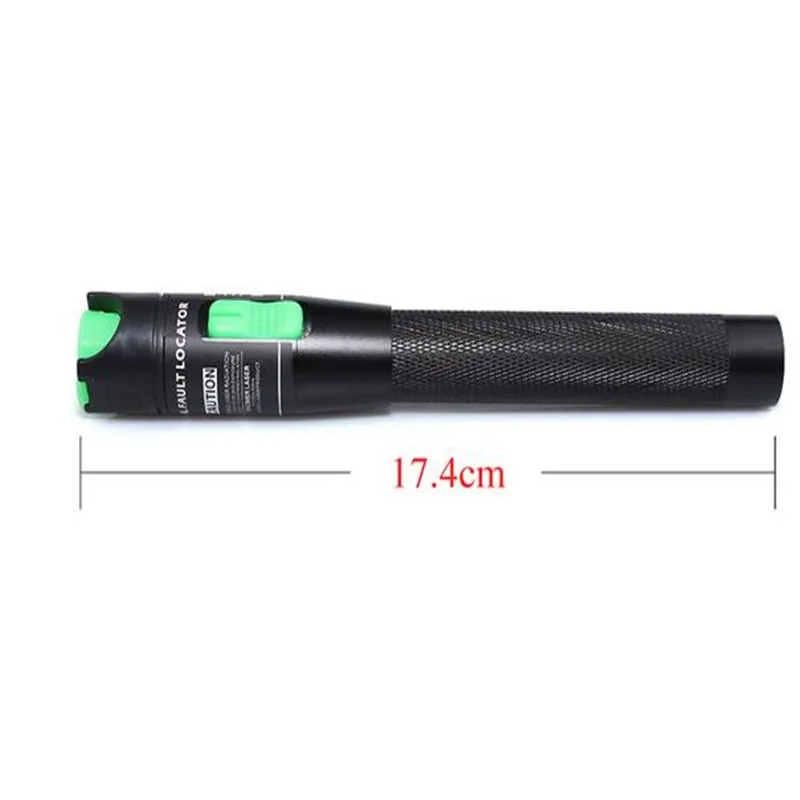

Dimension (mm)

168 X 27

Package Include

1 x Visual Fault Locator 30mw(without Battery)

1x Ceramic Sleeve

2.62.820mw vfl-320mw vfl-412.5

JW3105P_fiber_ optic_visual_ fault_locator(9)
